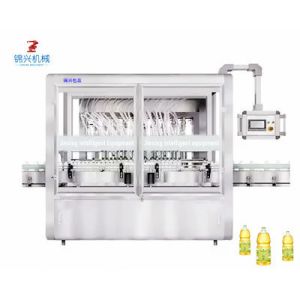

10 Nozzle Soy Sauce Filling Machine 60BPM Automatic Condiment Linear Liquid Filling Machine

Model NO. : FPL-10 Filling Machine

Feed Cylinder Structure : Multi-Room Feeding

Dosing Device : Plunger

Filling Principle : Pressure

Packaging Container Lifting Structure : Chute Pneumatic Combination Lifting

Structure : Linear

Packaging : Bottle

Packaging Material : Plastic

The Material : Stainless Steel

Transport Package : Packed in Wooden Cases

Specification : 2000mmx1500mmx2200mm

Trademark : Jinxing

Origin : China Jiangsu

HS Code : 8422301090

Supply Ability : 100 Units a Year

After-sales Service : Site Installation, Site Maintenance

Warranty : 12 Months

Type : Piston Filling Machine

Automatic Grade : Automatic

Material Type : Liquid

Filling Valve Head : Multi-Head

Customization : Available | Customized Request

Place of Origin : China

Brand Name : Jinxin

MOQ : 1

Price : negotiable

Packaging Details : carton box

Contact Now

Soy Sauce Filling Machine Automatic Condiment Linear Liquid Filling Machine

Fully automatic multi lane liquid sachet stick pack paste sauce water filling and packing machine
4 lanes 6 lanes 8 lanes 10 lanes honey oil vinegar salad dressings ketchup ice pop packing machine Multi lane small sachet liquid stick bag ice popsicle mustard liquid soap sanitizer packaging machine

1. High degree of automation, easy operation, stable operation, can effectively save corporate costs and improve production efficiency.
2. Each single machine can complete its work independently. It has independent operating system and electrical
components such as numerical control display to control and adjust various parameters and display settings. Can help companies achieve standardized production
3. The individual machines are linked and separated quickly, and the adjustment is fast and simple, so that each process of production can be coordinated.
4. Each single machine can adapt to the packaging of various specifications of bottles, with few adjustment parts.
5. This packaging production line adopts international new process design and meets GMP standards.
6. The production line runs smoothly, each function is easy to combine, and the maintenance is convenient. Various production combinations can be performed according to the user's respective product process requirements.

10 Nozzle Soy Sauce Filling Machine 60BPM Automatic Condiment Linear Liquid Filling Machine
Precision filling valve.
1, widely used in filling machinery, especially suitable for fine and complex materials.
2. Fast filling speed.
3, exquisite and compact, easy to mirror or pipeline layout
4. The special sealing design at the bottom of the filling mouth prevents leakage during filling.
5. Chamfering structure at the bottom of filling head. With fixed effect, can be submerged into the bottom of the bottle filling.
6. With motor control, the filling valve can rise synchronously with the liquid level, effectively reducing foam generation.
Special metering cylinder design.
As shown in the picture, the cylinder liner is mounted on the top of the worktable, and the one-button piston decylinder design provides much more flexibility than the traditional non-removable and cleanable cylinder liner, making it easier to clean and replace seals.
10 Nozzle Soy Sauce Filling Machine 60BPM Automatic Condiment Linear Liquid Filling Machine
10 Nozzle Soy Sauce Filling Machine 60BPM Automatic Condiment Linear Liquid Filling Machine
Servo motor driven filling
1, fast speed, high precision, good stability;
2. High speed filling is used in the initial stage of filling. When filling volume is close to the target, slow filling can be used to prevent liquid overflow pollution bottle mouth;
3, easy to adjust, filling specifications only need to change the parameters on the touch screen, dose adjustment can also be adjusted on the touch screen;
4, compared with the traditional filling method, servo motor driven machine is not affected by the change of compressed air pressure, higher production efficiency.

Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
Filling Nozzle 4 Nozzle 6 Nozzle 8 Nozzle 10 Nozzle 12 Nozzle 16 Nozzle 18 Nozzle
Filling Speed 30 bot/min 40 bot/min 50 bot/min 60 bot/min 70 bot/min 80 bot/min 90 bot/min
Filling Volume 50-500ml, 100-1000ml
Filling Accuracy ±0.5-1%
Power Voltage 220V,50/60Hz,2Phase;380V, 50/60Hz, 3 Phase
Air Consumption 0.6-0.8Mpa
Remark 1. Filling speed is 500ml/ bottle of water.
2. Filling speed will be different due to different material characteristics.
3. More options can be customized according to your requirements.
10 Nozzle Soy Sauce Filling Machine 60BPM Automatic Condiment Linear Liquid Filling Machine
Changzhou Jintan Jinxing Machinery Co., LTD., founded in 2004, is located in The Yangtze River Delta Economic development Zone changzhou Jintan District, is engaged in packaging machinery products manufacturing, sales and import and export business as one of the intelligent equipment manufacturing enterprises.
The main products of the company are rational bottle machine, bottle washing machine, filling machine, capping machine, labeling machine, packing machine, palletizing machine, etc.
The company is mainly engaged in pesticide chemical industry, petrochemical industry, cosmetics, medicine, food industry intelligent workshop overall solution and landing turnkey project business. The company attaches importance to independent innovation, product technology and quality in the domestic industry in an important position, with leading technical innovation ability and high-quality staff team for domestic and foreign customers to provide a number of reliable packaging production line automation overall personalized solutions.

Our services
The sample service
1. We can send you the production video of the machine.
You are welcome to visit our factory at any time. You can see the machines in operation here. We'll arrange to pick you up when you come.
Customized service
1. We can design the machine according to your requirements (material, power, filling type, bottle type, etc.).
2. We will also give you professional advice.
After-sales service
1. We will provide the BILL of lading in time to ensure that you can get the qualified machine quickly.
2. After you complete the preparation conditions, our engineers will go to your factory for installation, testing and training.
We provide one year warranty, free of charge to provide vulnerable parts.
Successful cases
Through efficient cost control, we find the right balance with our customers: diversified production range, high-end packaging form. At the same time, the efficient operation of equipment improves the market competitiveness of enterprises. Wangji will provide customers with customized beverage production line solutions, including bottle design, label design, beverage preparation, packaging system and advertising solutions of the best solutions, to help customers easily start businesses, easy access to the market.
